Components And Components Location: Components

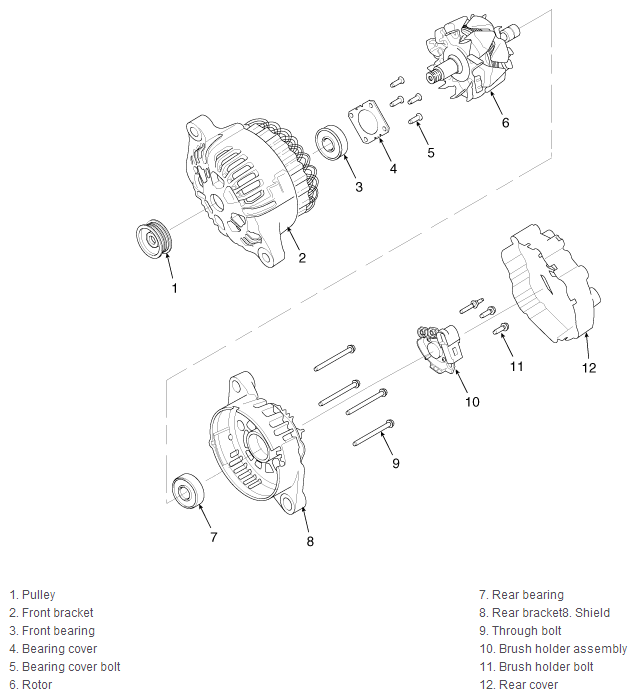

Fig 1: Exploded View Of Alternator Components

G12053704

Courtesy of HYUNDAI MOTOR AMERICA
