Home
>>
Hyundai
>>
2017
>>
Santa Fe Sport Base, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Components and Components Location
>>
Components
>>
Rear Power Window Switch
Rear Power Window Switch

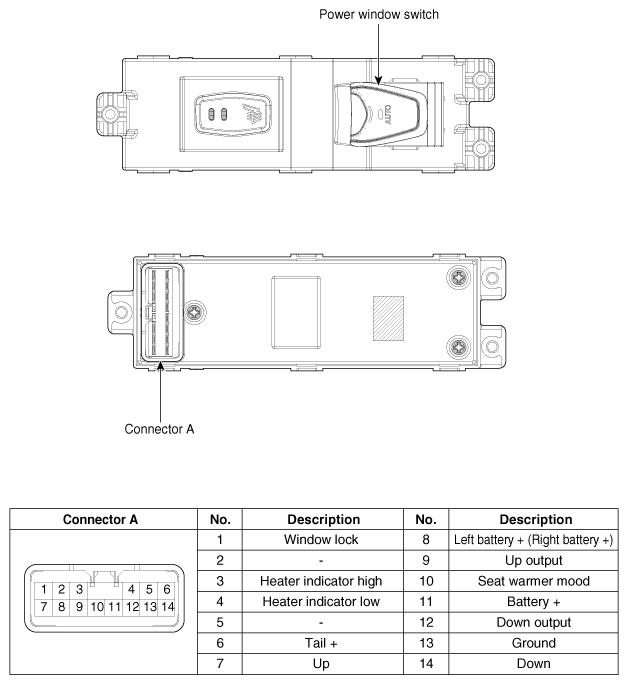

Fig 1: Rear Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
