Components and Components Location
>>
Components
>>
Driver Power Window Switch
Driver Power Window Switch

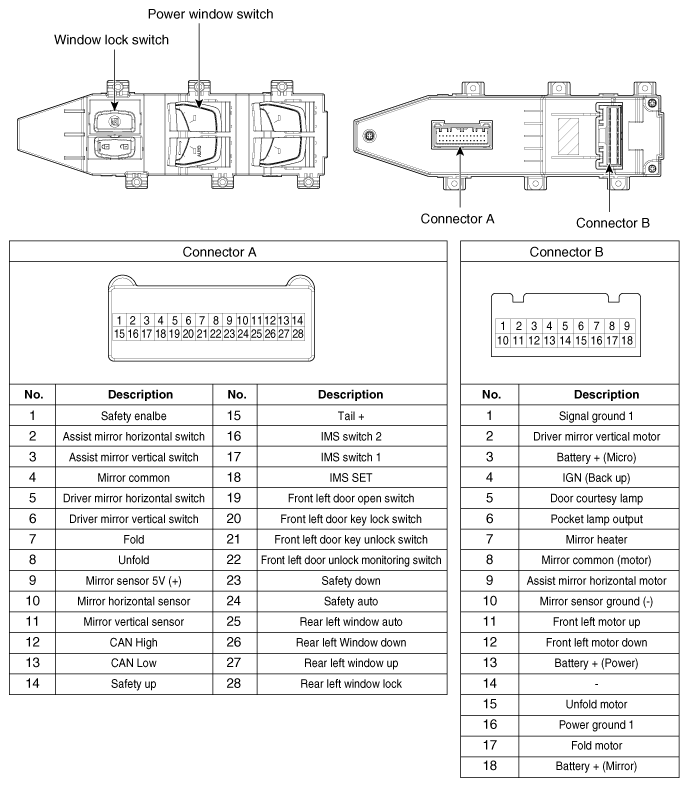

Fig 1: Driver Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
