Home >> Hyundai >> 2017 >> Santa Fe Sport Base, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components and Components Location >> Components

Components and Components Location: Components

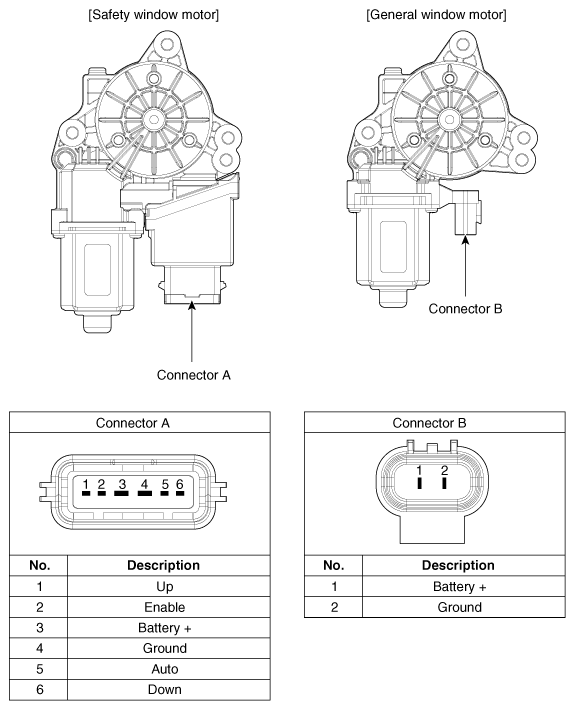

Fig 1: Power Window Motor Connectors

G12054715

Courtesy of HYUNDAI MOTOR AMERICA
