Repair Procedures: Replacement
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the third row seat.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")

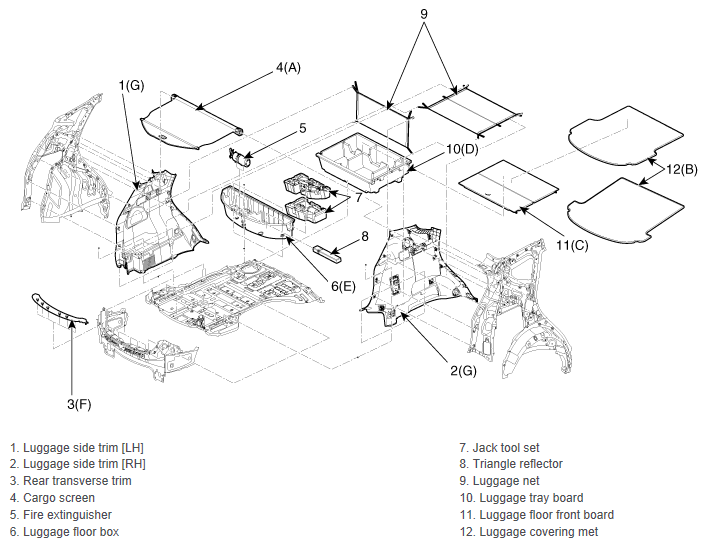

- Remove the cargo screen (A).
- Remove the luggage covering met (B).
- Remove the luggage floor front board (C).
- Remove the luggage tray board (D).
- After loosening the mounting screws, then remove the luggage floor box (E).
- Remove the rear transverse trim (F).
- After loosening the mounting screws, then remove the luggage side trim (G).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
