Liftgate Switch

  1. Check for continuity between the liftgate latch terminals.

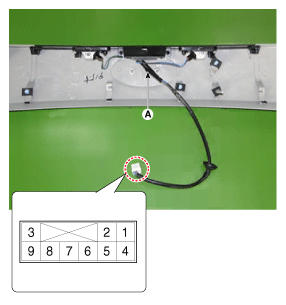

    Fig 1: Liftgate Switch Connector Terminals
    G12054423Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
Fig 2: Liftgate Switch Terminal Continuity Chart
G12054424Courtesy of HYUNDAI MOTOR AMERICA
