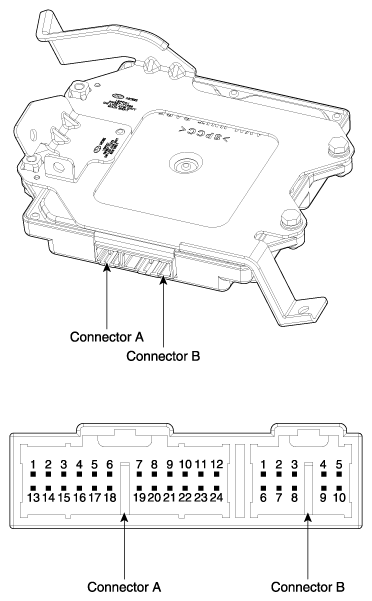

| 1 |
Front camera - Power |
1 |
Switch indicator |
| 2 |
Front camera - GND |
2 |
Chassis CAN low |
| 3 |
Right camera - Power |
3 |
- |
| 4 |
Right camera - GND |
4 |
IGN2 |
| 5 |
Front camera - video input |
5 |
ACC |
| 6 |
Front camera - video GND |
6 |
Multi-View Camera switch |
| 7 |
Right camera - video input |
7 |
Chassis CAN high |
| 8 |
Right camera - video GND |
8 |
GND |
| 9 |
Multi-View Camera video output Y |
9 |
- |
| 10 |
Multi-View Camera video output C |
10 |
- |
| 11 |
- |
|
| 12 |
- |
| 13 |
Rear camera - Power |
| 14 |
Rear camera - GND |
| 15 |
Left camera - Power |
| 16 |
Left camera - GND |
| 17 |
Rear camera - video input |
| 18 |
Rear camera - video GND |
| 19 |
Left camera - video input |
| 20 |
Left camera - video GND |
| 21 |
Multi-View Camera video GND Y |
| 22 |
Multi-View Camera video GND C |
| 23 |
- |
| 24 |
- |
