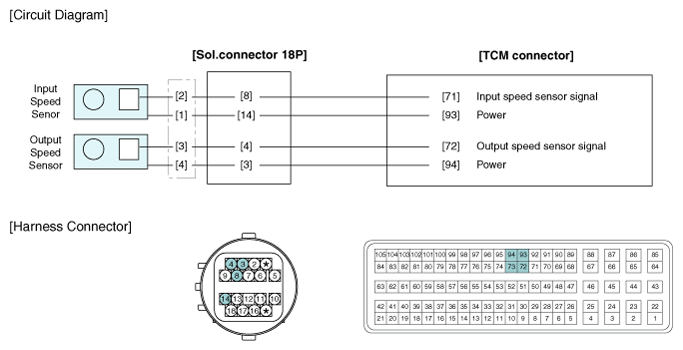

Home >> Hyundai >> 2017 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
