Compensation Requirement and Procedure

Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only
- Reset the 4WD ECU's (Controller) clutch learning.

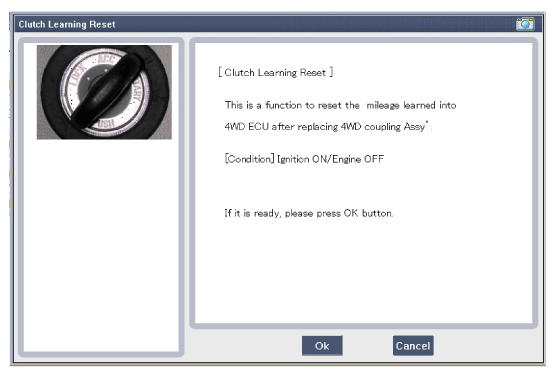

Fig 1: Screen Display - Resetting 4WD ECU (Controller) Clutch Learning (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

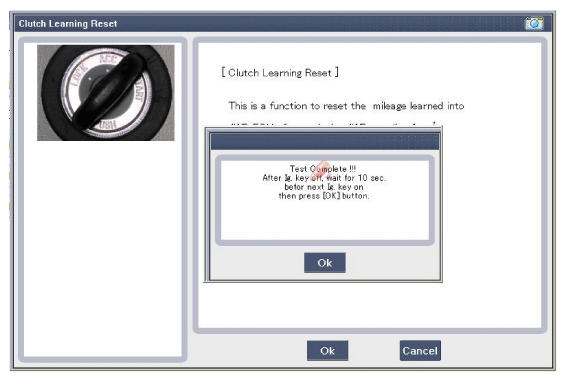

Fig 2: Screen Display - Resetting 4WD ECU (Controller) Clutch Learning (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Replacement of 4WD ECU (Controller) only
- Before replacement: Check the ECU's clutch learning.

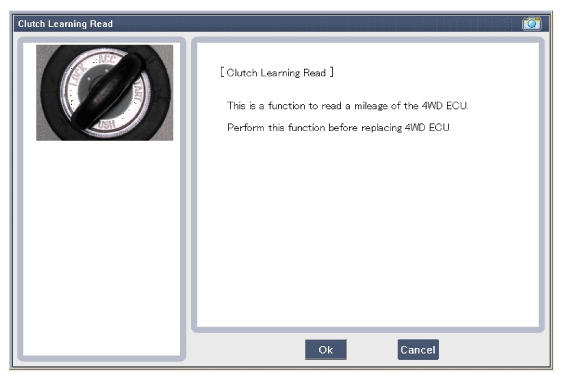

  Fig 3: Screen Display - ECU Clutch Learning (1 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

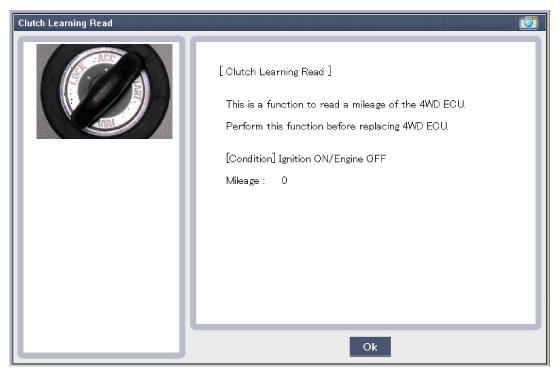

  Fig 4: Screen Display - ECU Clutch Learning (2 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA
- After replacement: Enter the original ECU's clutch learning into the replacement ECU.

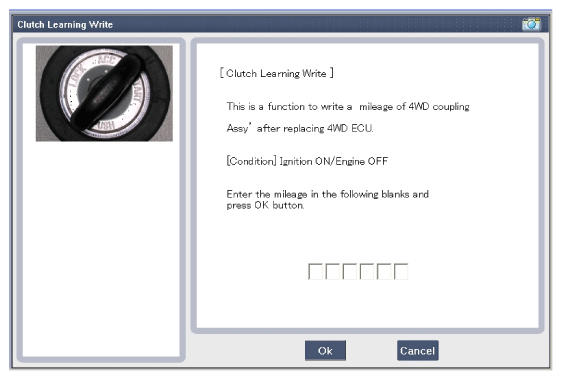

  Fig 5: Screen Display - Enter Original ECU Clutch Learning
  Courtesy of HYUNDAI MOTOR AMERICA
