Home >> Hyundai >> 2017 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Rear Suspension System And Wheel Alignment >> Components and Components Location >> Components >> 4WD

Components and Components Location: Components: 4WD

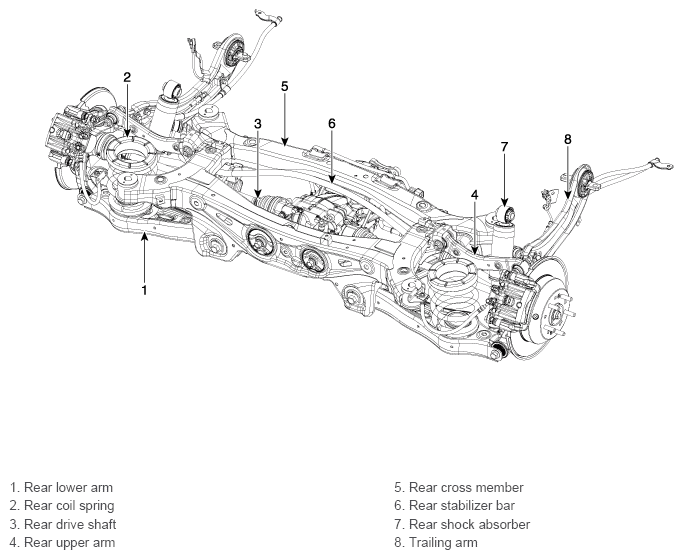

Fig 1: Rear Suspension System Components (4WD)

G12056055

Courtesy of HYUNDAI MOTOR AMERICA
