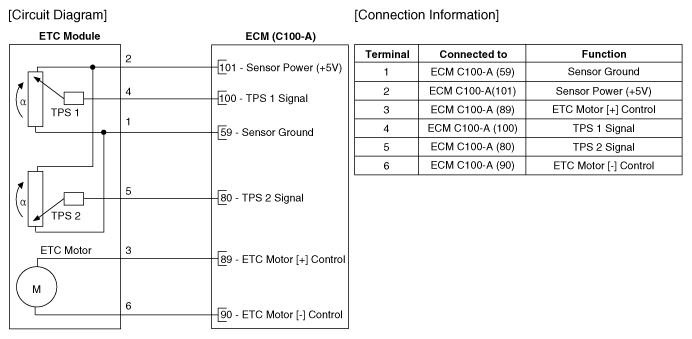

Home >> Hyundai >> 2017 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
