Tolerance Compensation Environments

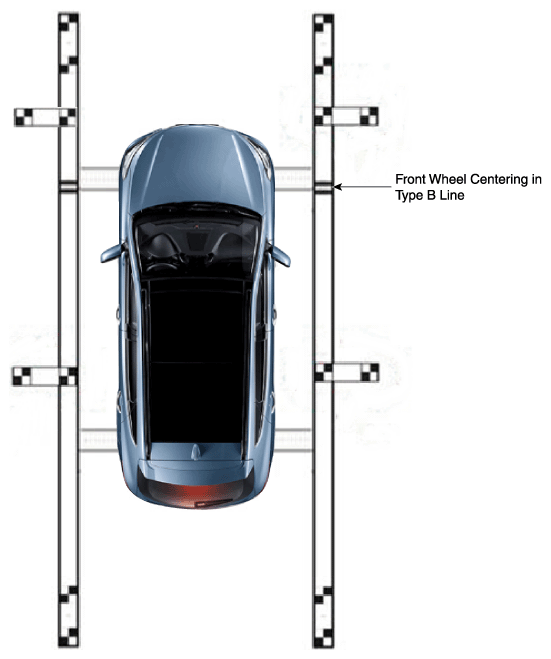

Fig 1: Multi-View Camera System Tolerance Compensation Environments

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: There are two types of tolerance compensation [manual tolerance compensation] and [automatic tolerance compensation].
The service center with the Multi-View Camera exclusive workshop performs [automatic tolerance compensation].
The maintenance environment lacking an Multi-View Camera exclusive workshop performs [manual tolerance compensation].
