Repair Procedures: Removal

Remove the floor console.
(Refer to Body- "FLOOR CONSOLE ")
Remove the air duct.
Disconnect sports mode connector (A).

Fig 1: Disconnecting Sports Mode Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the shift cable (A).

Fig 2: Disconnecting Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (A) by removing the bolts (C- 4 ea)
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

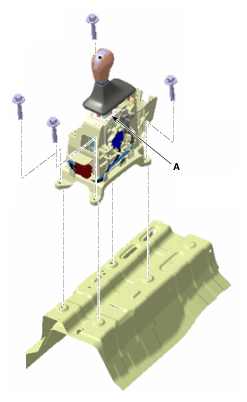

Fig 3: Removing Shift Lever Assembly Bolts
Courtesy of HYUNDAI MOTOR AMERICA
