Components and Components Location: Components

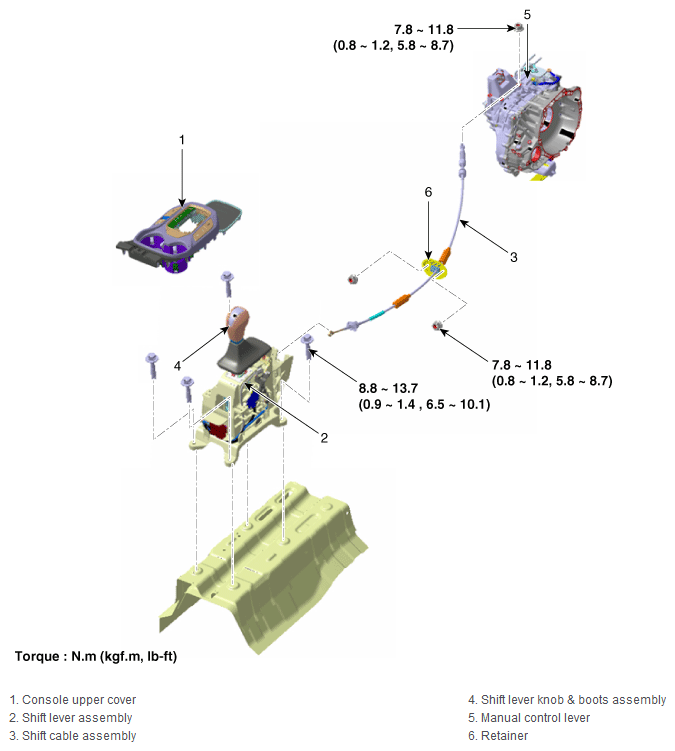

Fig 1: Shift Lever Components With Torque Specification

G12055820

Courtesy of HYUNDAI MOTOR AMERICA
