Signal Waveform

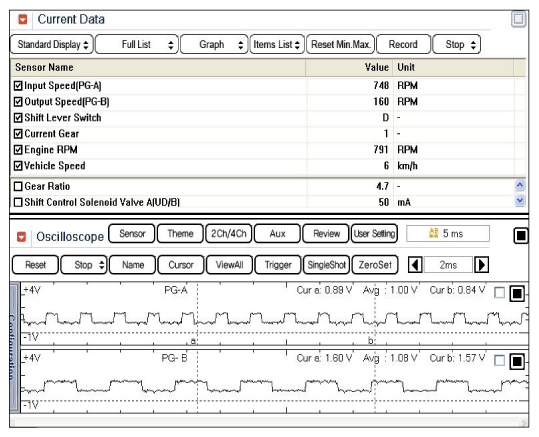

Fig 1: Screen Display - Output Speed Sensor Signal Waveform (1 Of 2)
G12055716Courtesy of HYUNDAI MOTOR AMERICA

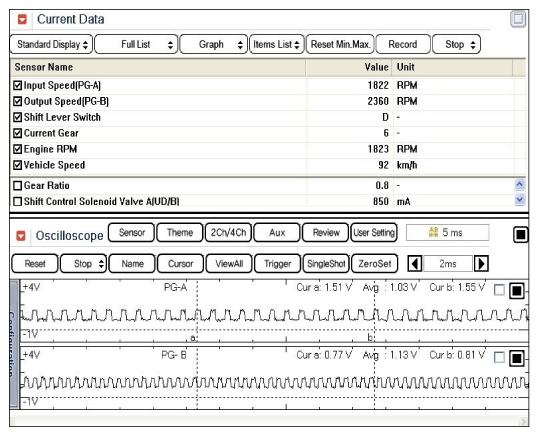

Fig 2: Screen Display - Output Speed Sensor Signal Waveform (2 Of 2)
G12055717Courtesy of HYUNDAI MOTOR AMERICA
