Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "Ignition Coil ")

  2. Using a spark plug wrench, remove the spark plug (A).
    NOTE:
    • Be careful that no contaminates enter into spark plug holes.

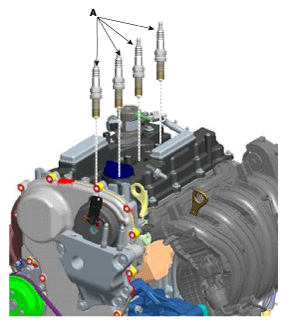

    Fig 1: Removing Spark Plug
    G12053796Courtesy of HYUNDAI MOTOR AMERICA
