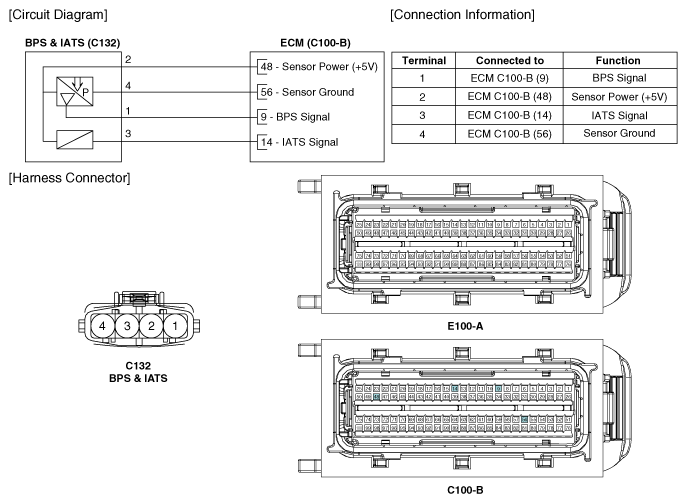

Home >> Hyundai >> 2017 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Barometric Pressure Sensor (BPS) >> Schematic Diagrams >> Circuit Diagram
