Components And Components Location: Components

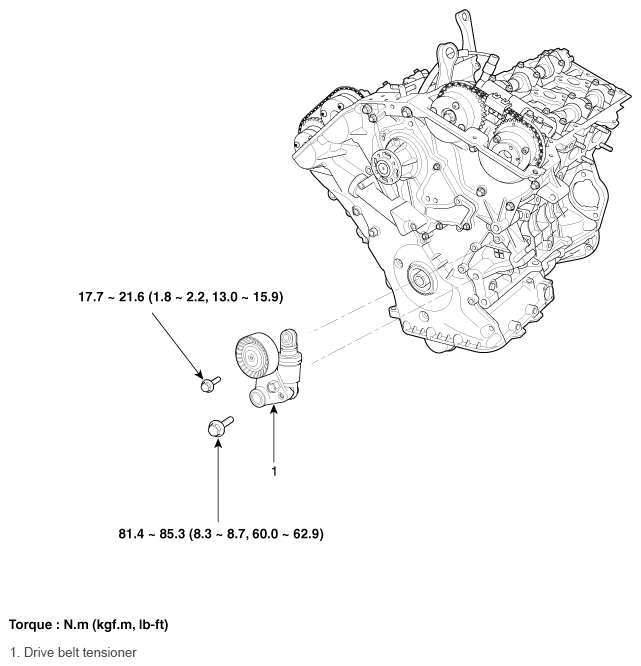

Fig 1: Drive Belt Tensioner Components With Torque Specifications

G12032712

Courtesy of HYUNDAI MOTOR AMERICA
