Home >> Hyundai >> 2017 >> Santa Fe SE Ultimate, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Components And Components Location >> Components >> Notes

Components And Components Location: Components: Notes

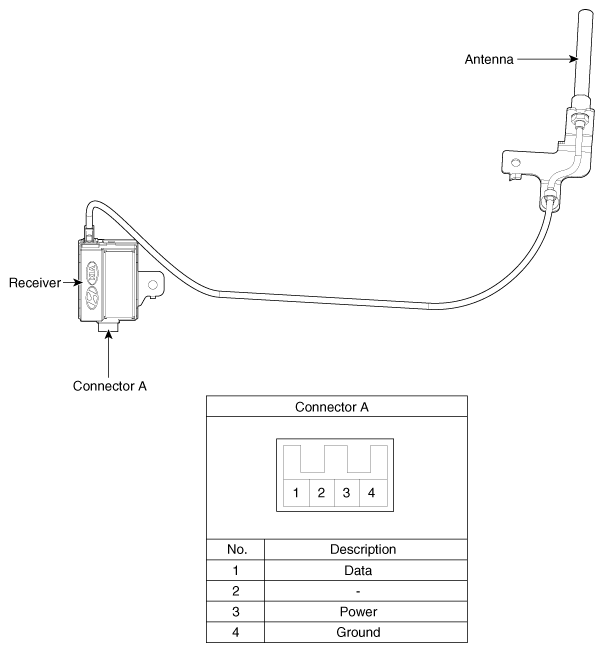

Fig 1: Smart Key Unit & Connector Terminals Description Chart
G12037415Courtesy of HYUNDAI MOTOR AMERICA

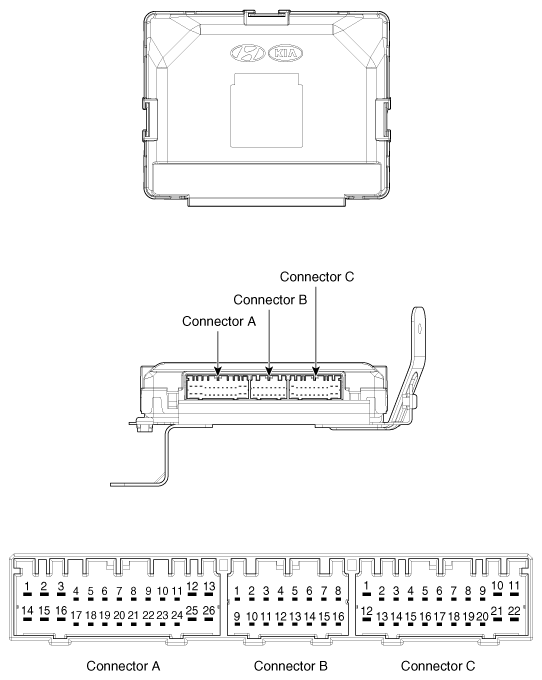

Fig 2: Locating Smart Key Unit Connector Terminals
G12037414Courtesy of HYUNDAI MOTOR AMERICA
