Components And Components Location: Component

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.

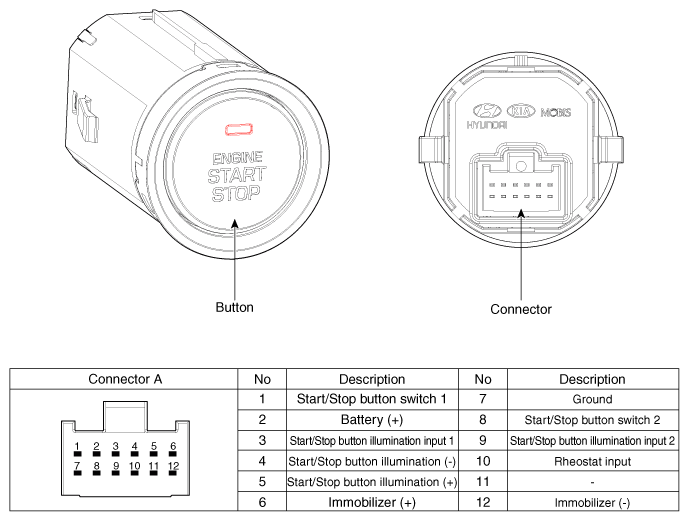

Fig 1: Locating Start And Stop Button And Connector
G12113813Courtesy of HYUNDAI MOTOR AMERICA
