Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

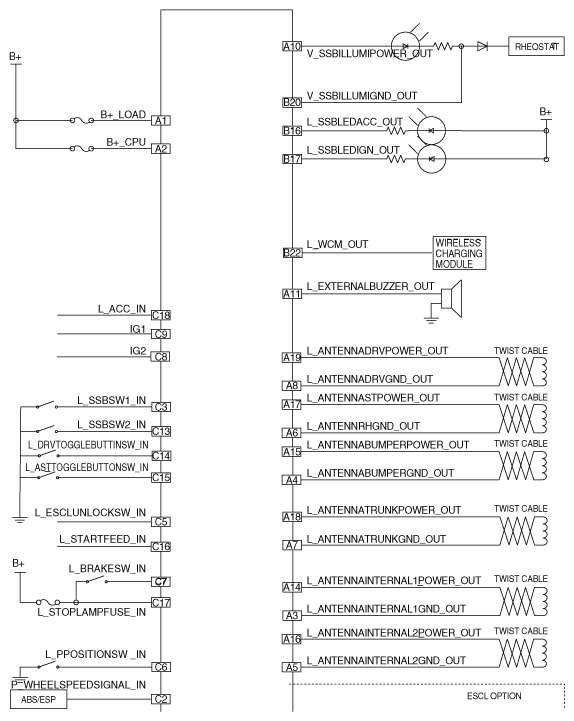

Fig 1: Smart Key Unit Circuit Diagram (1 Of 2)
G12113336Courtesy of HYUNDAI MOTOR AMERICA

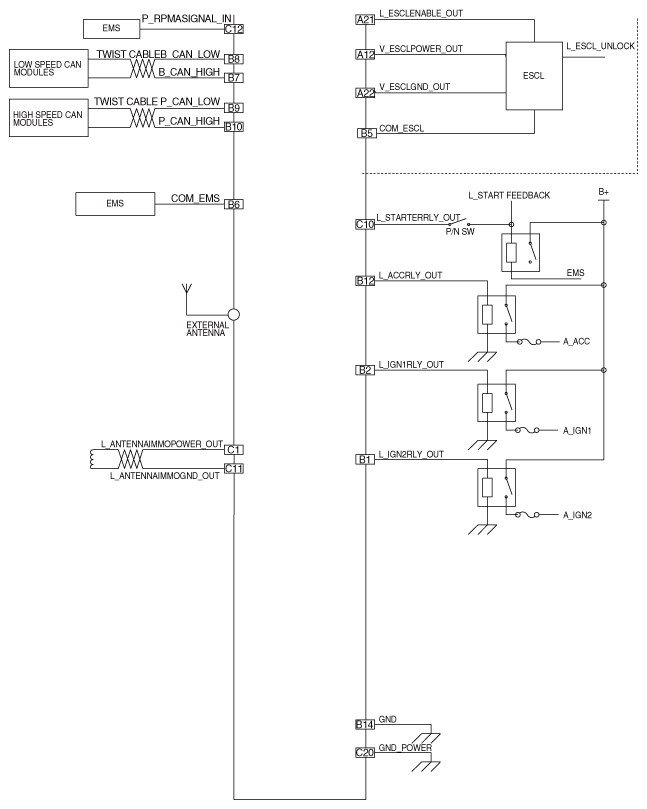

Fig 2: Smart Key Unit Circuit Diagram (2 Of 2)
G12113337Courtesy of HYUNDAI MOTOR AMERICA
