FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB Key Status Info".

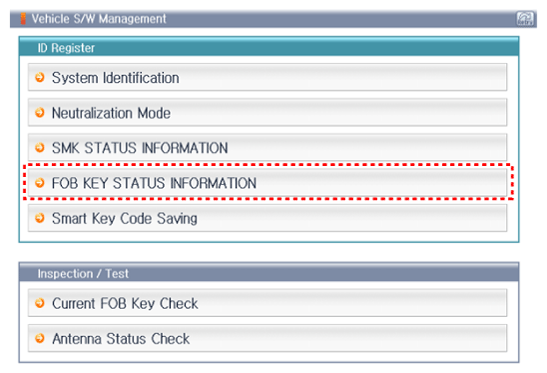

Fig 1: Scantool Display - Vehicle S/W Management
G12113356Courtesy of HYUNDAI MOTOR AMERICA

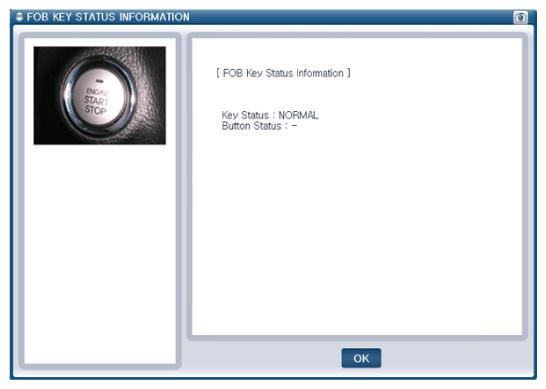

Fig 2: Scantool Display - FOB Key Status Information
G12113357Courtesy of HYUNDAI MOTOR AMERICA
