Driver Power Window Switch
- Disconnect the negative (-) battery terminal.
- Remove the driver door trim.
(Refer to Body - "FRONT DOOR TRIM ")

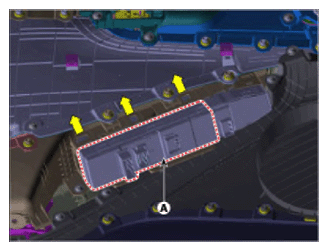

- Disconnect the power mirror switch connector from the door trim.

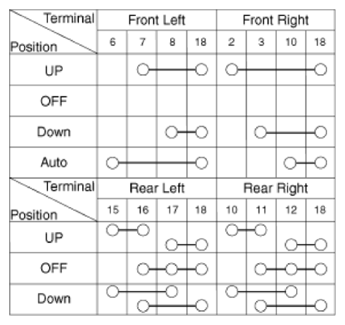

- Check for continuity between the terminals in each switch position as shown below.
Driver Auto Down Power Window Switch

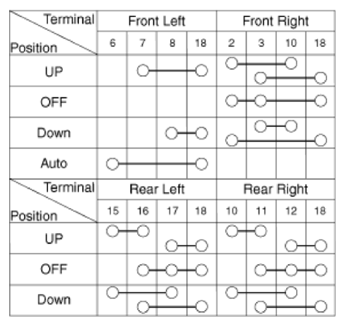

Driver Safety Power Window (Driver Auto)

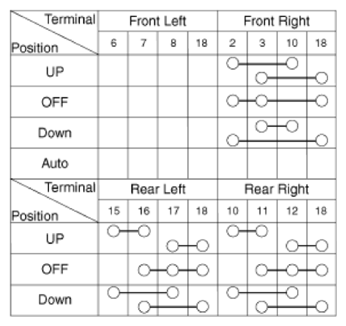

Front Safety Power Window (Front Auto)
Power Door Lock Switch Inspection
Power Window Lock Switch Inspection
