Repair Procedures: Replacement: Notes

NOTE:
  • Do not disassembly the steering gear box.
  • If disassembly the steering gear box, the quality (Noise/cleanliness/functions) is not guaranteed.

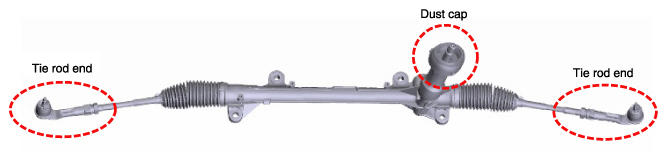

Fig 1: Tie Rod End And Dust Cap
G12026463Courtesy of HYUNDAI MOTOR AMERICA
