Components And Components Location: Components

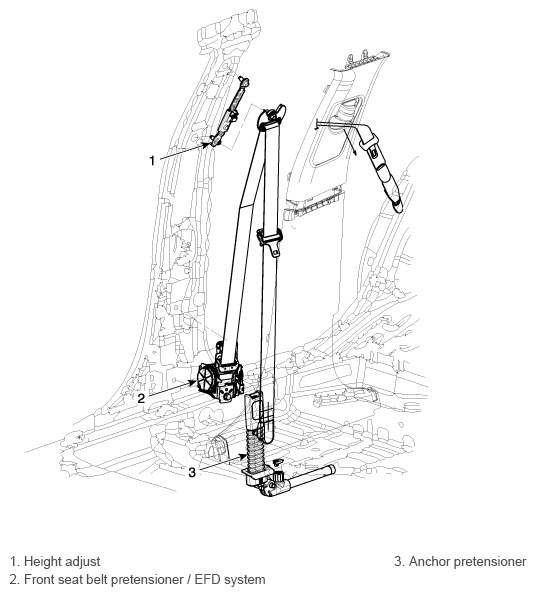

Fig 1: Front Seat Belt Components

G12022943

Courtesy of HYUNDAI MOTOR AMERICA
