Schematic Diagrams: Notes

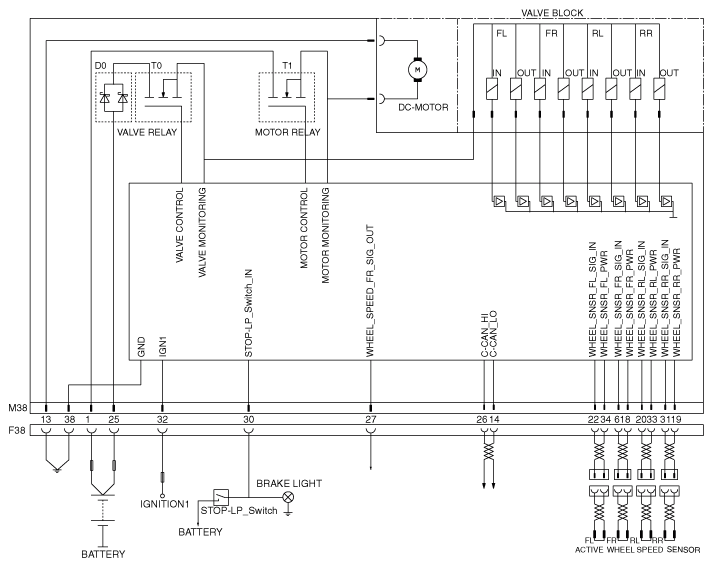

Fig 1: ABS Control Schematic

G12027005

Courtesy of HYUNDAI MOTOR AMERICA
