Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

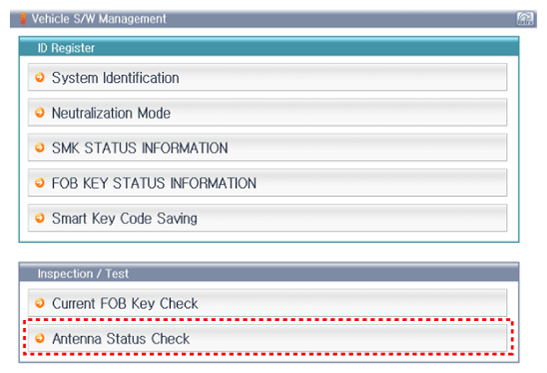

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of HYUNDAI MOTOR AMERICA
After IG ON, select the "Antenna Status Check".

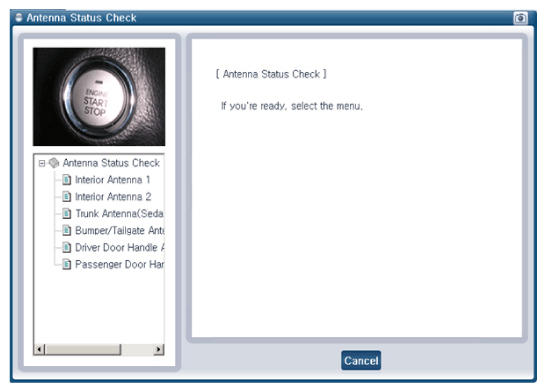

Fig 2: Scantool Display - Antenna Status Check
Courtesy of HYUNDAI MOTOR AMERICA
Set the smart key near the related antenna and operate it with a GDS.

Fig 3: Scantool Display - Interior Antenna 1
Courtesy of HYUNDAI MOTOR AMERICA

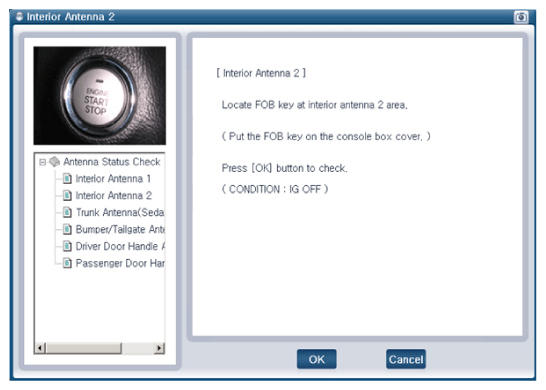

Fig 4: Scantool Display - Interior Antenna 2
Courtesy of HYUNDAI MOTOR AMERICA
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- BUMPER/Trunk Antenna
- DRV_DR Antenna
- AST_DR Antenna
