Component And Components Location: Components

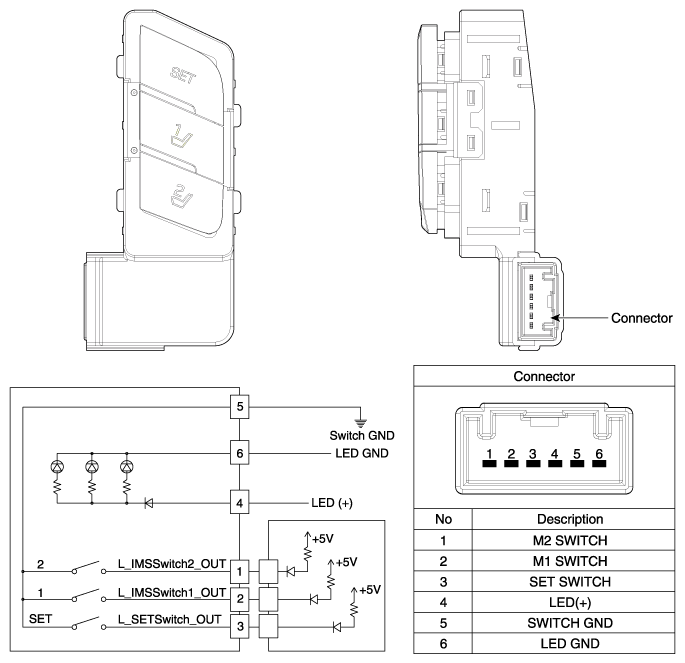

Fig 1: Memory Power Seat Switch Circuit, Connector And Terminal Description Chart

G12023417

Courtesy of HYUNDAI MOTOR AMERICA
