Components And Components Location: Components

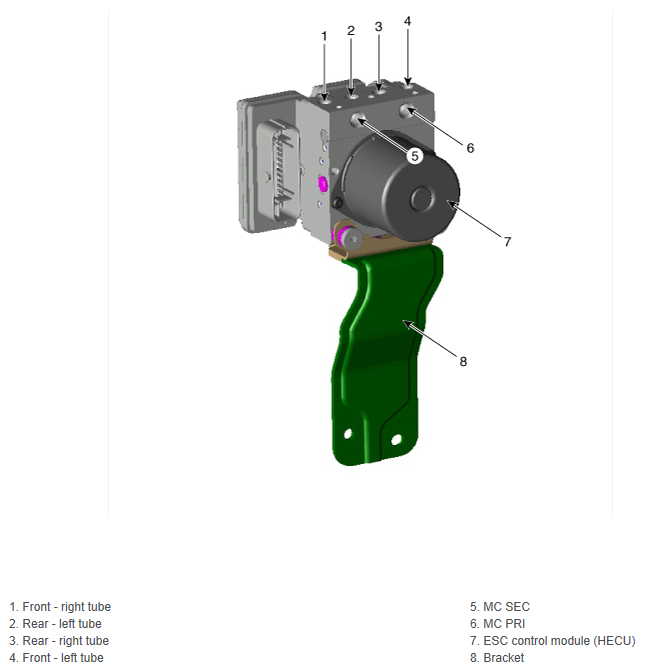

Fig 1: ESC Control Unit Components

G12027071

Courtesy of HYUNDAI MOTOR AMERICA
