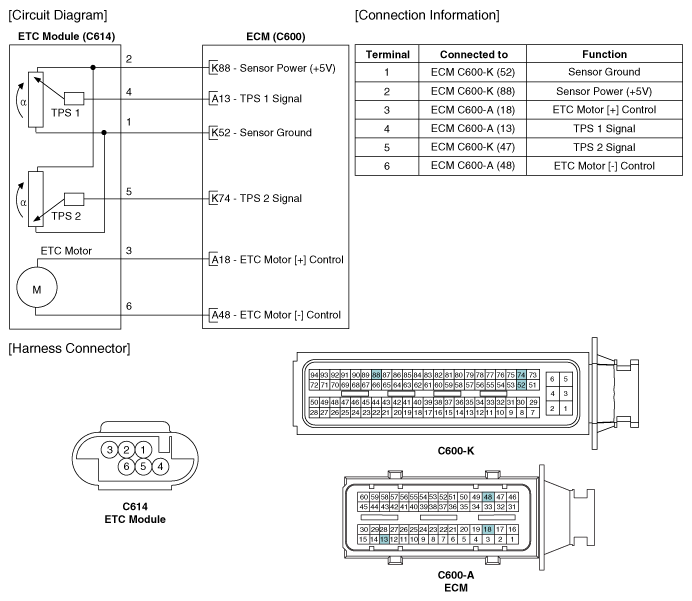

Home >> Hyundai >> 2017 >> Elantra Sport, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
