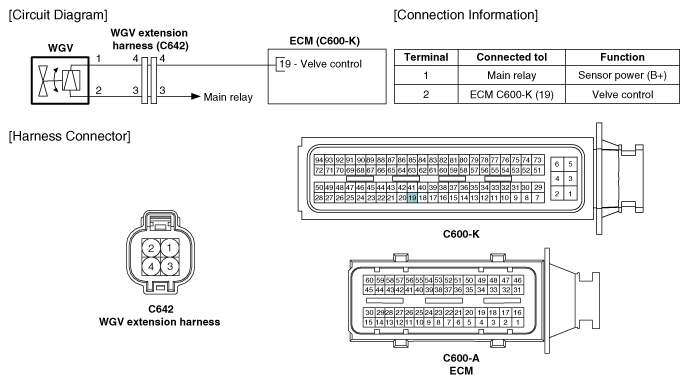

Home >> Hyundai >> 2017 >> Elantra Sport, Automatic DCT Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> WGT Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
