Components And Components Location: Components

[Torsion Beam Axle Type]

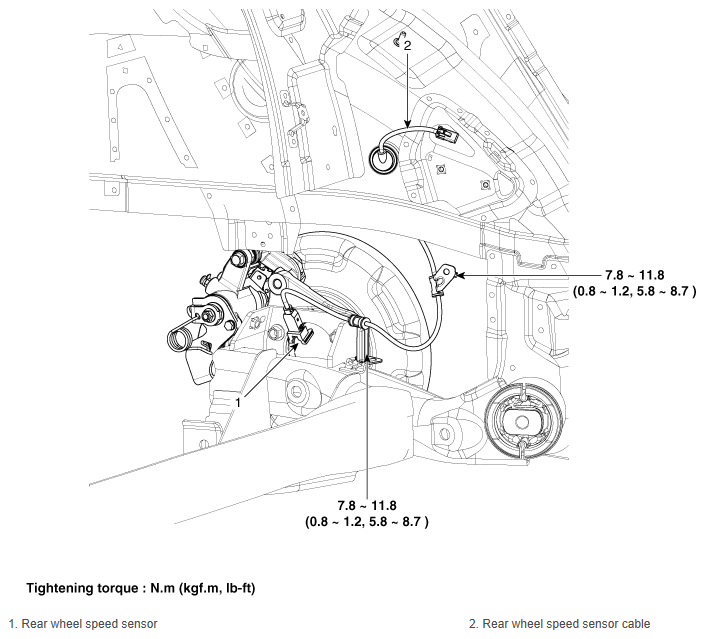

Fig 1: Rear Wheel Speed Sensor Components With Torque Specification - Torsion Beam Axle Type
G12027094Courtesy of HYUNDAI MOTOR AMERICA

[Multi Link]

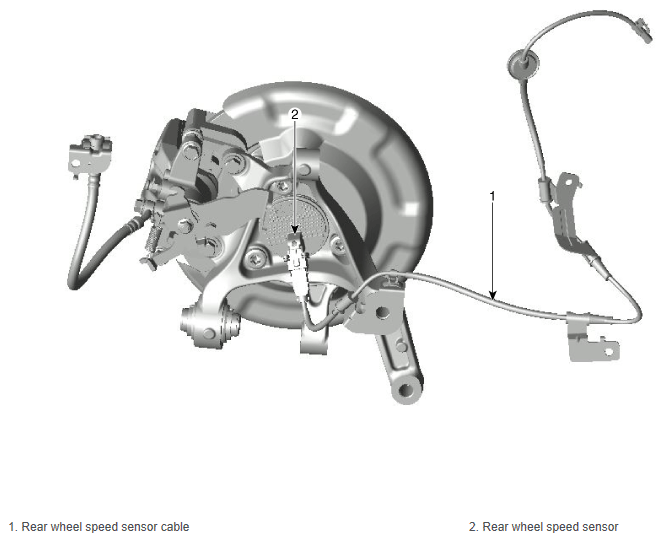

Fig 2: Rear Wheel Speed Sensor Components - Multi Link
G12027095Courtesy of HYUNDAI MOTOR AMERICA
