Home >> Hyundai >> 2017 >> Elantra SE, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 2.0L >> Control Cable >> Component And Components Location >> Components

Component And Components Location: Components

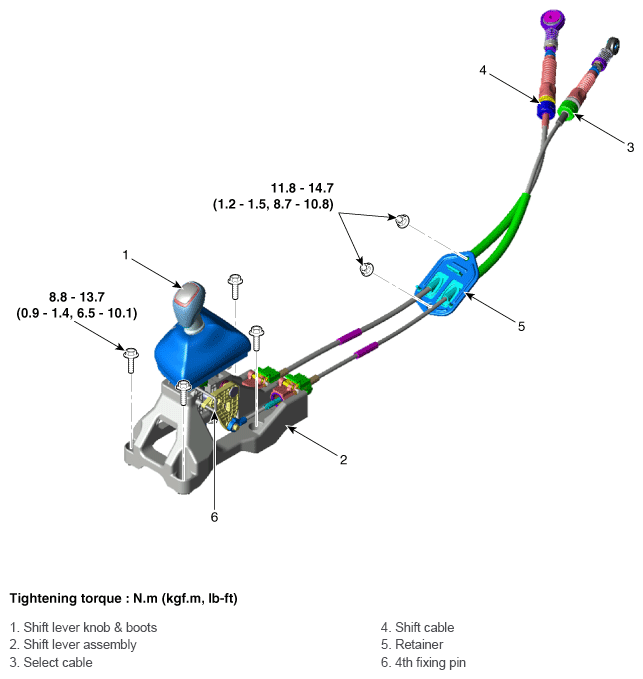

Fig 1: Control Cable Components With Torque Specifications

G12025098

Courtesy of HYUNDAI MOTOR AMERICA
