Home >> Hyundai >> 2017 >> Elantra GT Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram >> (A/T)

Circuit Diagram: (A/T)

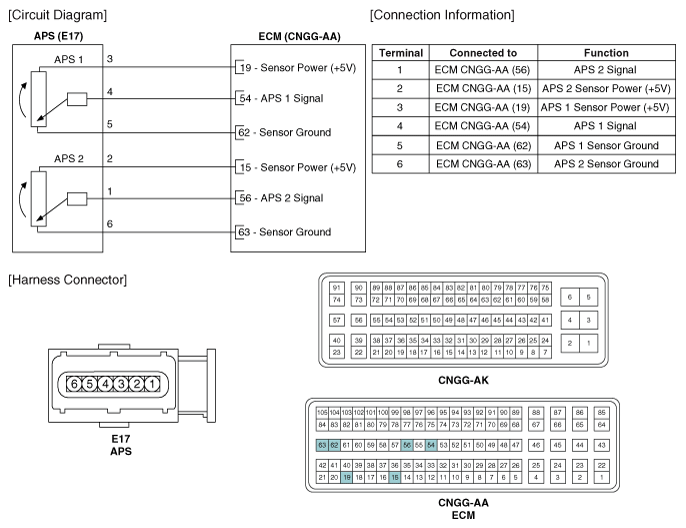

Fig 1: Accelerator Position Sensor Circuit (A/T)

G12066344

Courtesy of HYUNDAI MOTOR AMERICA
