Components And Components Location: Components

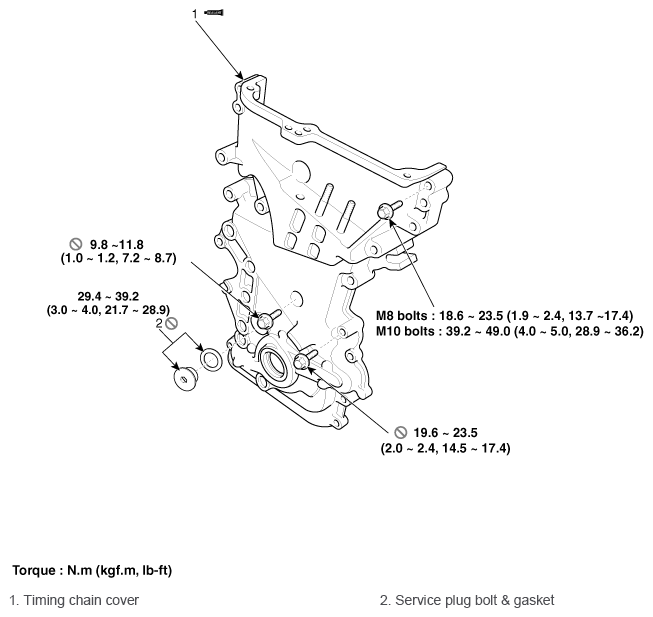

Fig 1: Timing Chain Cover Components With Torque Specification

G12074049

Courtesy of HYUNDAI MOTOR AMERICA
