Components And Components Location: Components

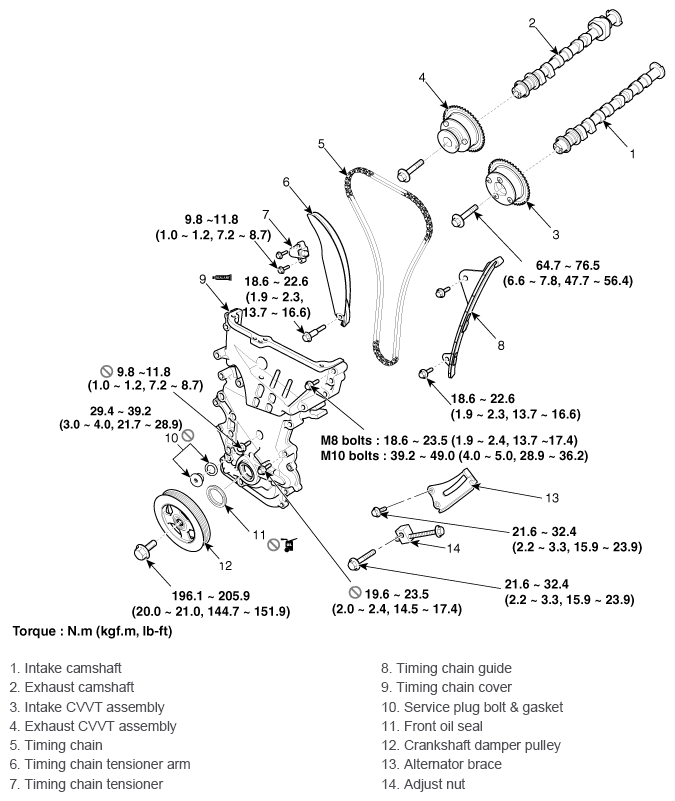

Fig 1: Exploded View Of Timing System Components With Torque Specification

G12074026

Courtesy of HYUNDAI MOTOR AMERICA
