Home >> Hyundai >> 2017 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Oil Pump >> Components And Components Location >> Components >> Notes

Components And Components Location: Components: Notes

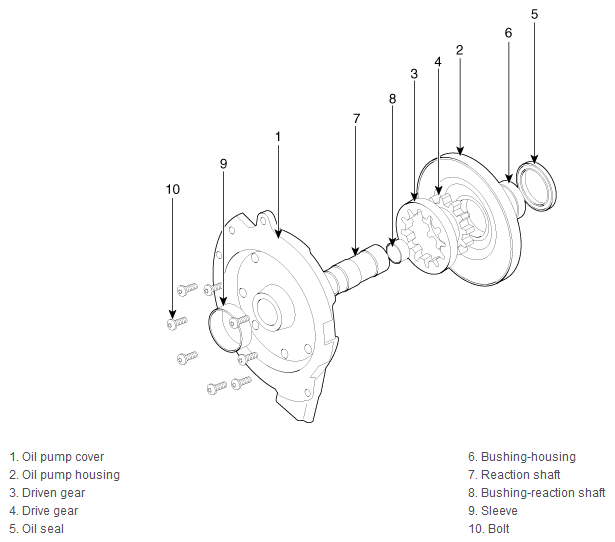

Fig 1: Oil Pump Components

G12066614

Courtesy of HYUNDAI MOTOR AMERICA
