Home >> Hyundai >> 2017 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly (R & I) >> Engine Room Under Cover >> Components And Components Location >> Components

Components And Components Location: Components

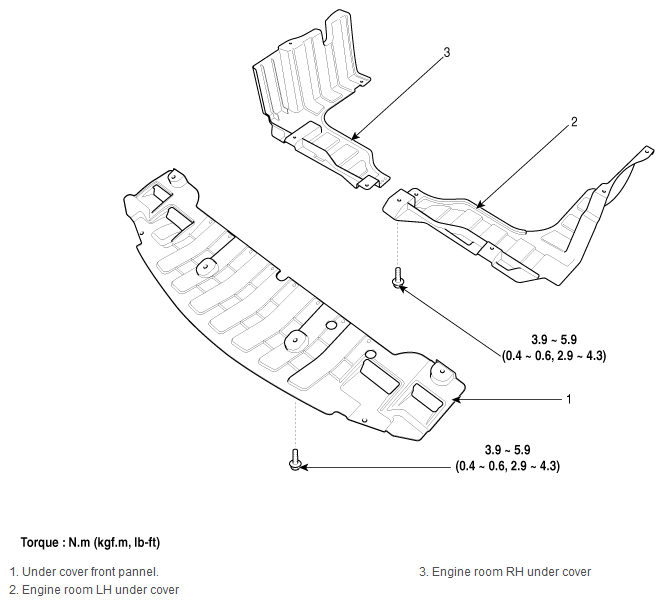

Fig 1: Engine Room Under Cover Components With Torque Specification
G12074003Courtesy of HYUNDAI MOTOR AMERICA
