Repair Procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Fig 1: Removing Front Wheel And Tire From Front Hub
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Disconnect the stabilizer link (B) from the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3~86.8lb-ft)

Fig 2: Disconnecting Stabilizer Link From Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the split pin and nut and then disconnect the tie-rod end (A) from the front knuckle.
Tightening torque:

23.5 ~ 33.3N.m (2.4 ~ 3.4kgf.m, 17.4 ~ 24.6lb-ft)

Fig 3: Disconnecting Tie-Rod End From Front Knuckle
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

78.5 ~ 88.3N.m (8.0 ~ 9.0kgf.m, 57.9 ~ 65.1lb-ft)

Fig 4: Removing Lower Arm Bolt & Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt and then disconnect the universal joint assembly (A) from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3N.m (3.3 ~ 3.8kgf.m, 23.9 ~ 27.5lb-ft)

Fig 5: Disconnecting Universal Joint Assembly From Pinion Of Steering Gear Box
Courtesy of HYUNDAI MOTOR AMERICA
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Must be replaced with new bolt when assembling. (SEAL-LOCK has been processed)
Loosen the bolt & nut and then separate the roll rod stopper (A).
Tightening torque:

107.9 ~127.5N.m (11.0 ~ 13.0kgf.m, 79.6 ~ 94.0lb-ft)

Fig 6: Separating Roll Rod Stopper
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the muffler rubber hanger (A).

Fig 7: Disconnecting Muffler Rubber Hanger
Courtesy of HYUNDAI MOTOR AMERICA

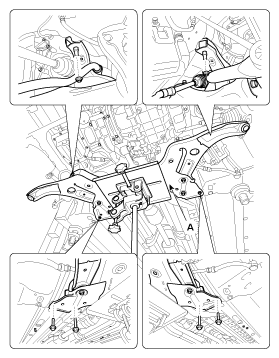

Loosen the bolts & nuts and then remove the sub frame (A).
Tightening torque:

Sub frame mounting bolt & nut

156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

Sub frame stay mounting bolt

44.1 ~ 53.9N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

Fig 8: Removing Sub Frame Mounting Bolts & Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt and then remove the protector (A) and steering gear box (B).
Tightening torque:

Steering gearbox bolts:

58.8 ~ 78.5N.m (6.0 ~ 8.0kgf.m, 43.4 ~ 57.9lb-ft)

Protector bolts:

6.9 ~ 10.8N.m (0.7 ~ 1.1kgf.m, 5.1 ~ 8.0lb-ft)

Fig 9: Removing Protector And Steering Gear Box
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
Check the wheel Alignment.
