Components And Components Location: Components

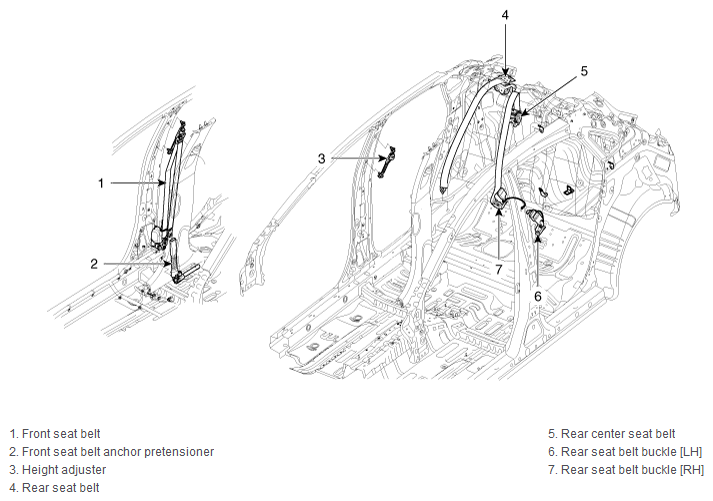

Fig 1: Front Seat Belt Components

G12076376

Courtesy of HYUNDAI MOTOR AMERICA
