WCS Reset

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

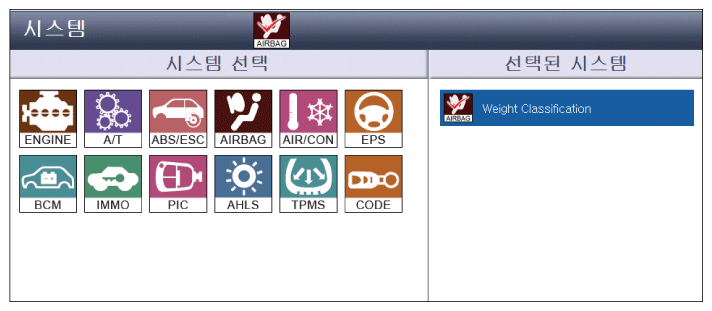

Fig 1: Scantool Display - Weight Classification System Select
Courtesy of HYUNDAI MOTOR AMERICA

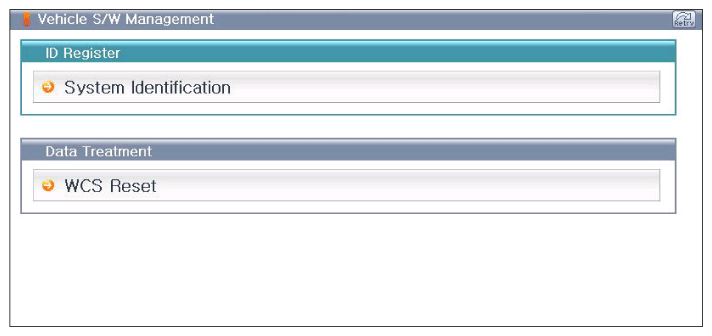

Fig 2: Scantool Display - Weight Classification System Reset (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

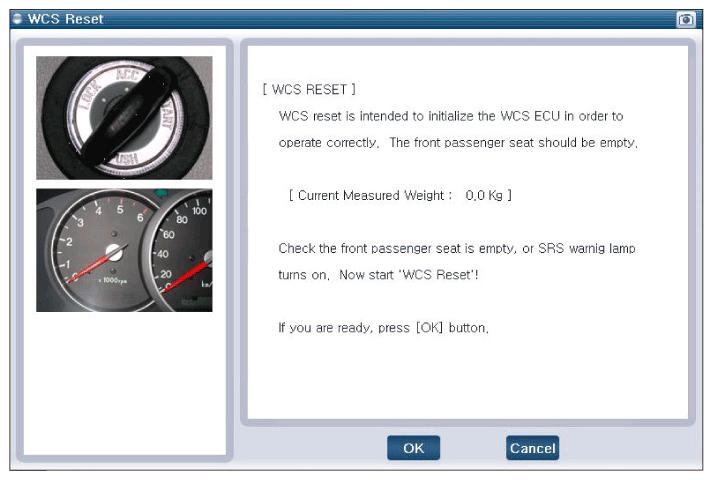

Fig 3: Scantool Display - Weight Classification System Reset (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

Specification: Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 seconds.
Make sure that there should not be vibration or weight adding to the passenger front seat.

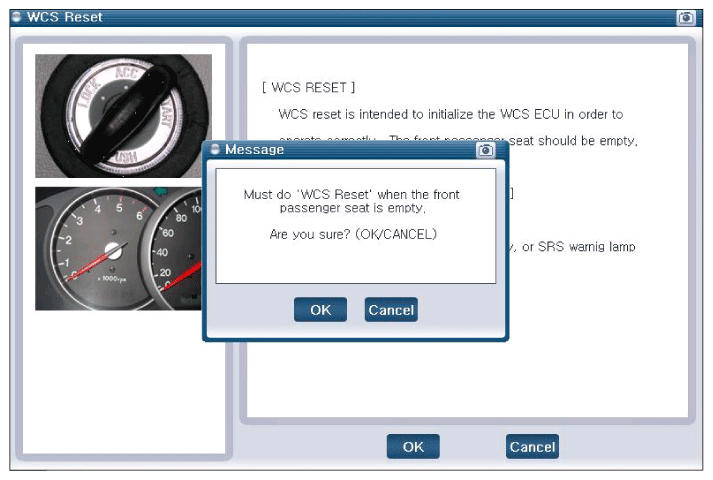

Fig 4: Scantool Display - Weight Classification System Reset (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

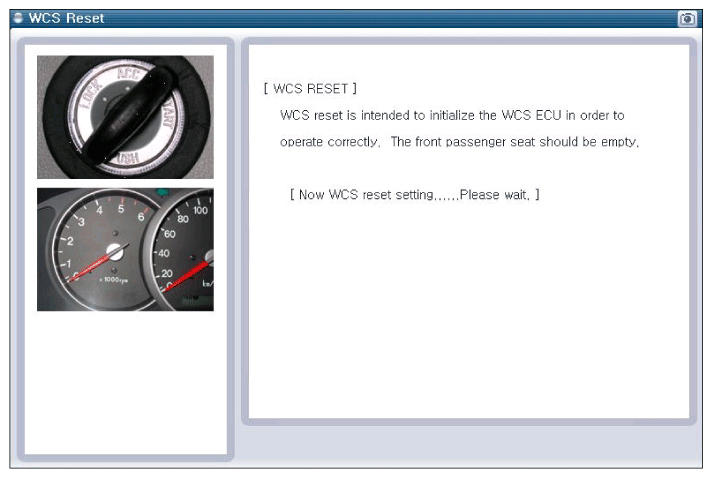

Fig 5: Scantool Display - Weight Classification System Reset (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Scantool Display - Weight Classification System Reset (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

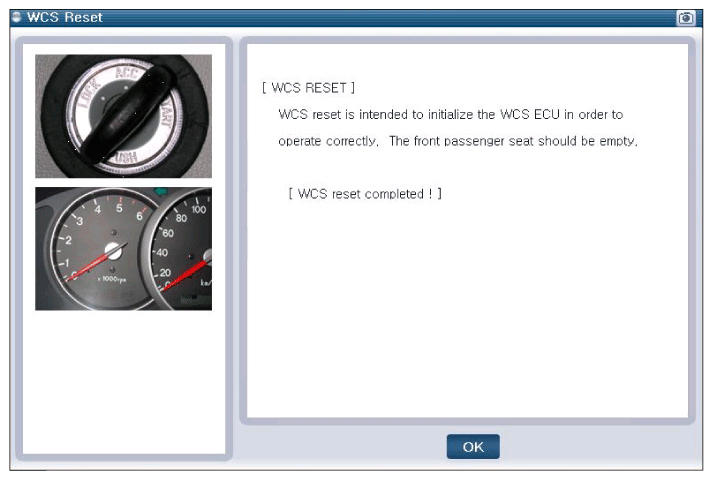

Fig 7: Scantool Display - Weight Classification System Reset (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
If the 'WCS Reset' operation is finished successfully, you will see the screen in the illustration below.

Fig 8: Scantool Display - Normal Data Of WCS
Courtesy of HYUNDAI MOTOR AMERICA

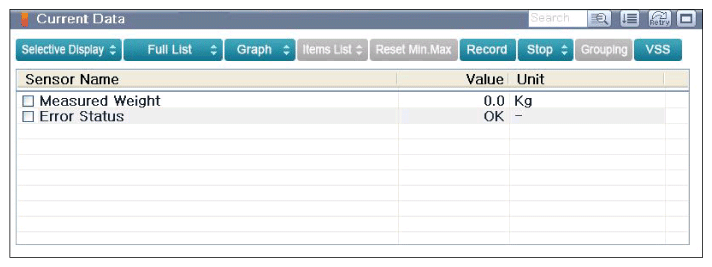

Fig 9: Scantool Display - Normal Current Data (Empty Data)
Courtesy of HYUNDAI MOTOR AMERICA

Specification: Approx. - 4.0 kg ~ + 4.0 kg
Is the displayed parameter the same as the above illustration?
YES
- WCS reset is performed correctly
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
