Circuit Diagram: (A/T)

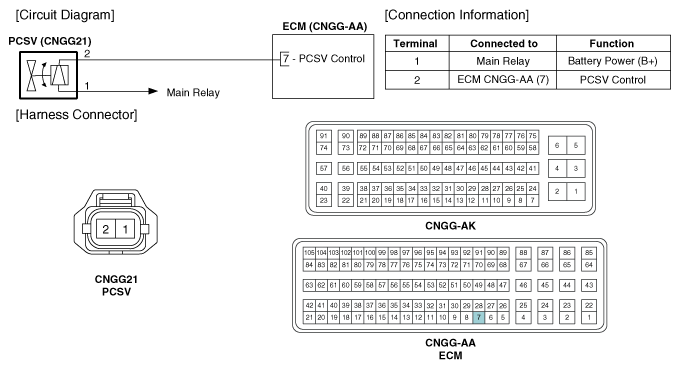

Fig 1: Purge Control Solenoid Valve Circuit (A/T)

G12066370

Courtesy of HYUNDAI MOTOR AMERICA
