Circuit Diagram: (A/T)

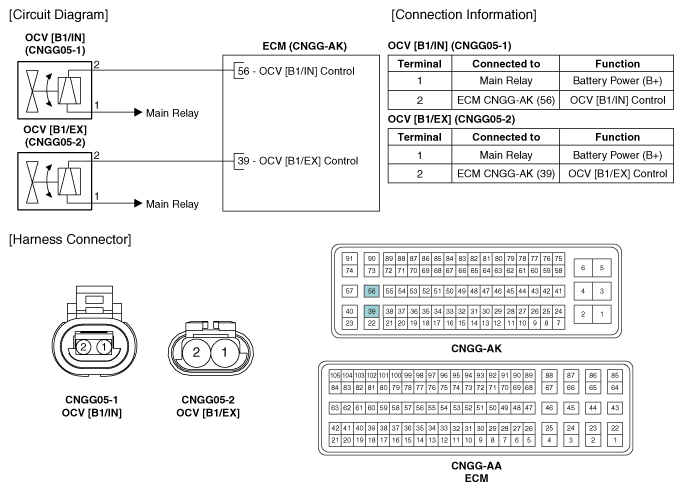

Fig 1: CVVT Oil Control Valve Circuit (A/T)

G12066375

Courtesy of HYUNDAI MOTOR AMERICA
