Home >> Hyundai >> 2017 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Piston And Connecting Rod >> Components And Components Location >> Components

Components And Components Location: Components

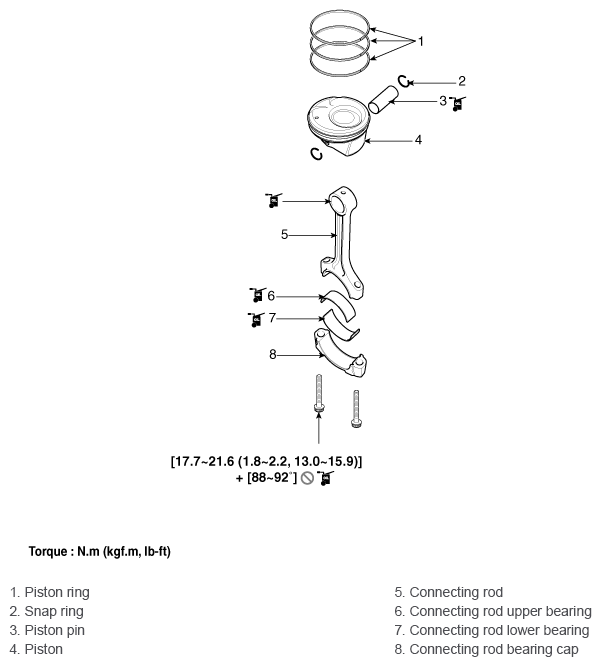

Fig 1: Piston And Connecting Rod Components With Torque Specification

G12074172

Courtesy of HYUNDAI MOTOR AMERICA
