Components And Components Location: Components

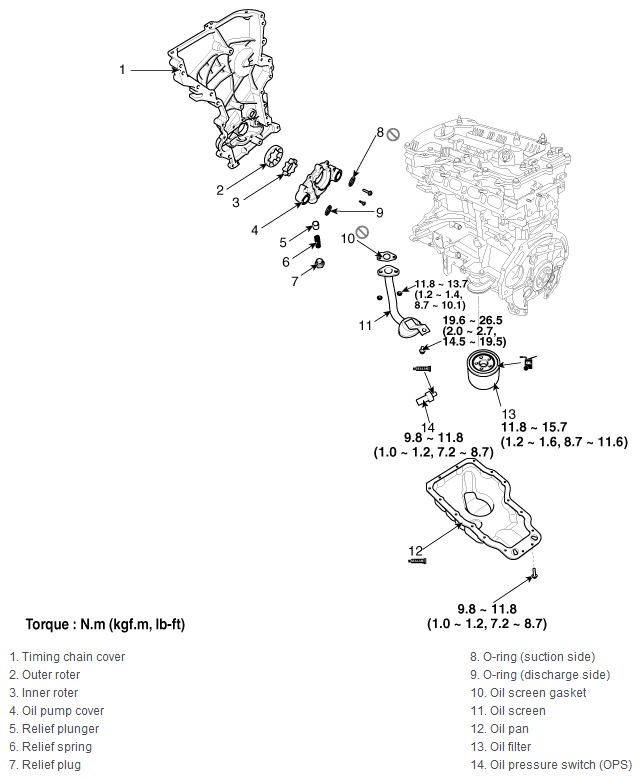

Fig 1: Lubrication System Components With Torque Specification

G12074255

Courtesy of HYUNDAI MOTOR AMERICA
