Home >> Hyundai >> 2017 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Water pump >> Components And Components Location >> Components

Components And Components Location: Components

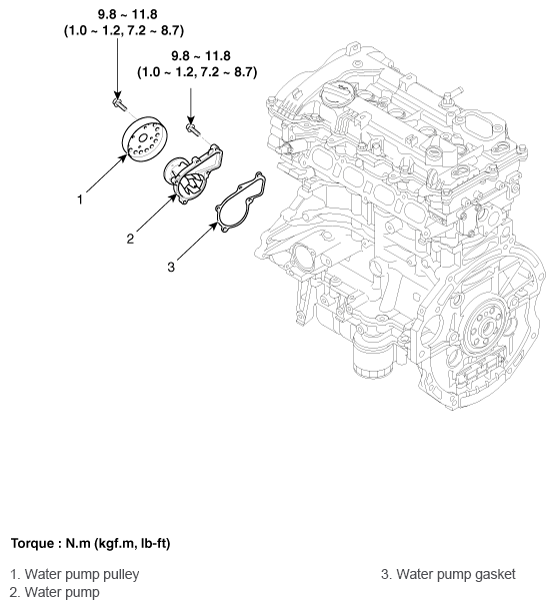

Fig 1: Water Pump Components With Torque Specifications

G12074248

Courtesy of HYUNDAI MOTOR AMERICA
