Emission Control System - General Information
>>
Components And Components Location
>>
Components Location
Components Location

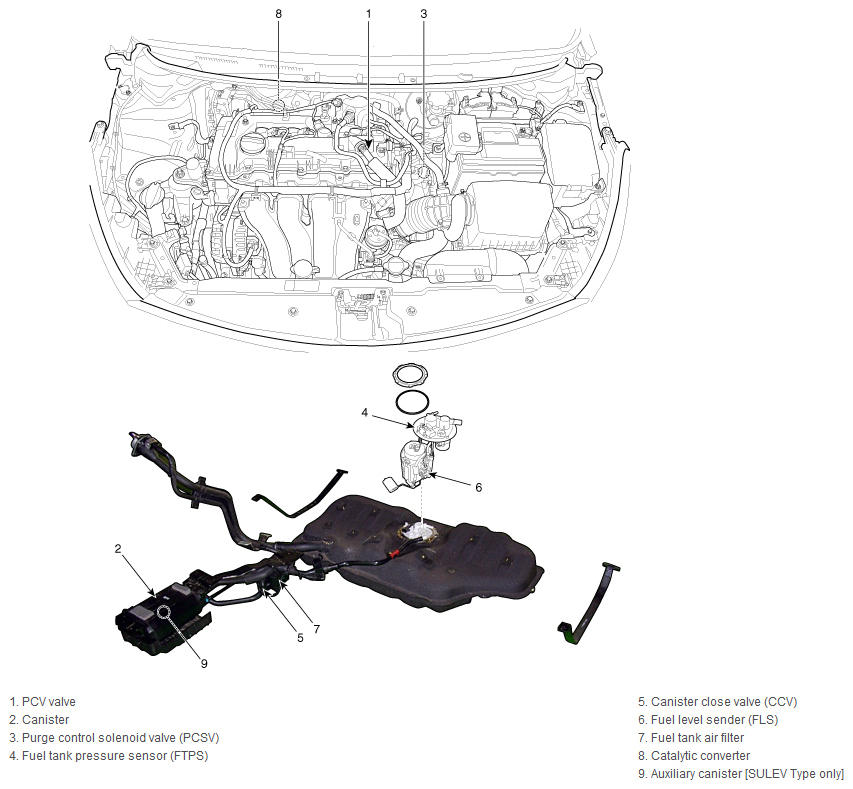

Fig 1: Engine Compartment Components (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

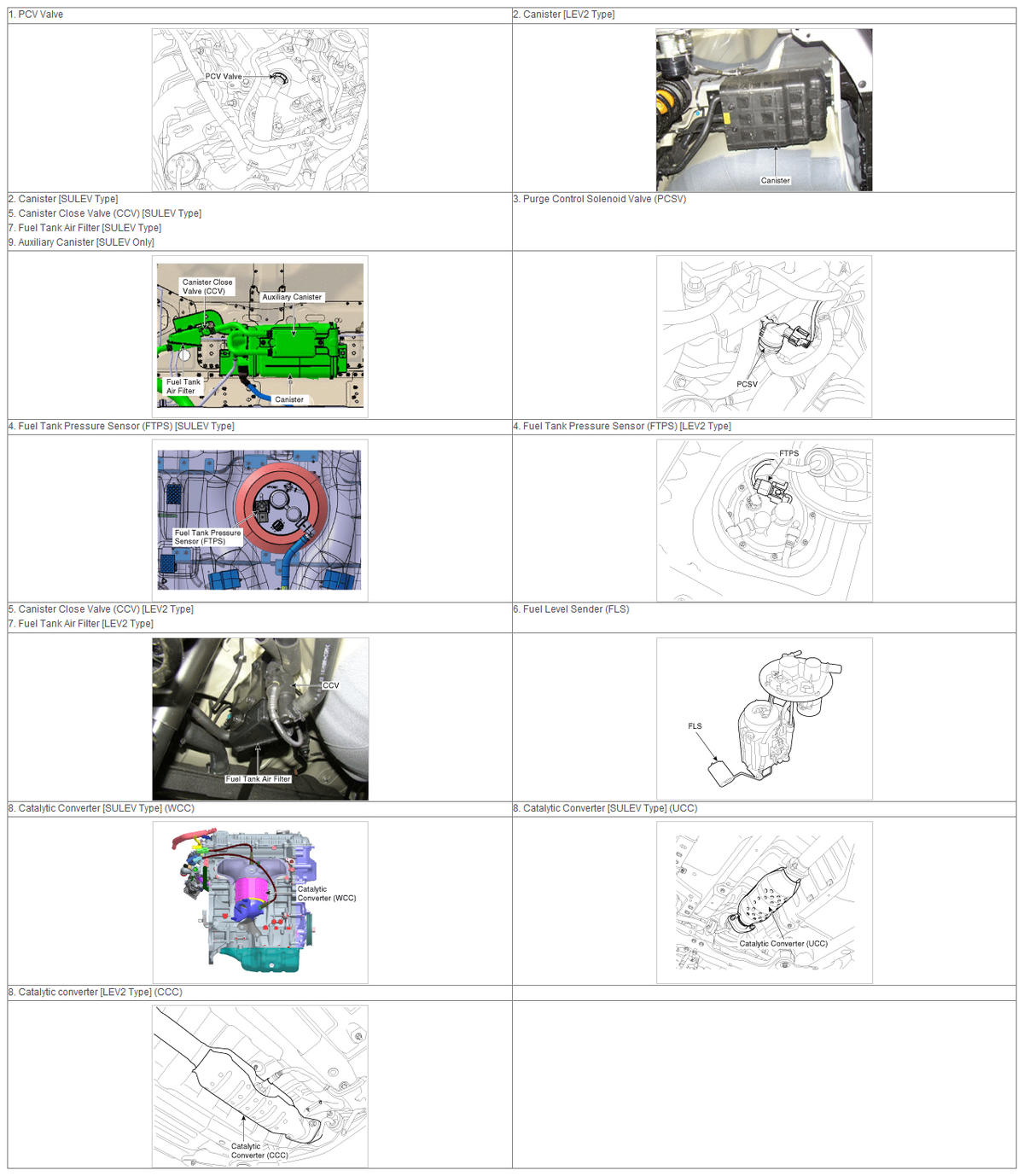

Fig 2: Engine Compartment Components (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
