Repair Procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
NOTE:
  • Take care not to scratch the body surface.
  1. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  2. Remove the floor console assembly.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to "FRONT PILLAR TRIM ")

  4. Remove the cowl side trim.

    (Refer to "COWL SIDE TRIM ")

  5. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  6. Remove the steering column shroud panel.

    (Refer to "STEERING COLUMN SHROUD PANEL ")

  7. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING ")

  8. Remove the instrument cluster.

    (Refer to "INSTRUMENT CLUSTER ")

  9. Remove the audio unit.

    (Refer to "AUDIO UNIT ")

  10. Remove the knee airbag (KAB) Module.

    (Refer to "KNEE AIRBAG (KAB) MODULE ")

  11. Disconnect the steering column connectors.

    (Refer to "MOTOR DRIVEN POWER STEERING ")

  12. Down the steering column after loosening the mounting bolts.

    (Refer to "MDPS MOTOR Steering System - "Steering Column and Shaft")

  13. After loosening the mounting screw, then remove the crash pad lower switch (A).
    Fig 1: Removing Crash Pad Lower Switch
    G12077168Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the crash pad lower switch connector (A).
    Fig 2: Disconnecting Crash Pad Lower Switch Connector
    G12077169Courtesy of HYUNDAI MOTOR AMERICA
  15. Using a screwdriver or remover, remove the crash pad driver's panel [RH] (A).
    Fig 3: Removing Crash Pad Driver Panel (RH)
    G12077170Courtesy of HYUNDAI MOTOR AMERICA
  16. Disconnect the start/stop button connector (A).
    Fig 4: Disconnecting Start/Stop Button Connector
    G12077171Courtesy of HYUNDAI MOTOR AMERICA
  17. After loosening the mounting screws, then remove the crash pad center lower panel (A).
    Fig 5: Removing Crash Pad Center Lower Panel
    G12077172Courtesy of HYUNDAI MOTOR AMERICA
  18. Disconnect the connectors (A).
    Fig 6: Disconnecting Connectors
    G12077173Courtesy of HYUNDAI MOTOR AMERICA
  19. Disconnect the cub is connector (A).
    Fig 7: Disconnecting Cub Connector
    G12077174Courtesy of HYUNDAI MOTOR AMERICA
  20. Using a screwdriver or remover, remove the photo sensor (A).
  21. Disconnect the photo sensor connector (B).
    Fig 8: Disconnecting Photo Sensor Connector
    G12077175Courtesy of HYUNDAI MOTOR AMERICA
  22. Disconnect the passenger's airbag connectors (A).
  23. Loosen the mounting bolts.
    Fig 9: Disconnecting Passenger Airbag Connectors
    G12077176Courtesy of HYUNDAI MOTOR AMERICA

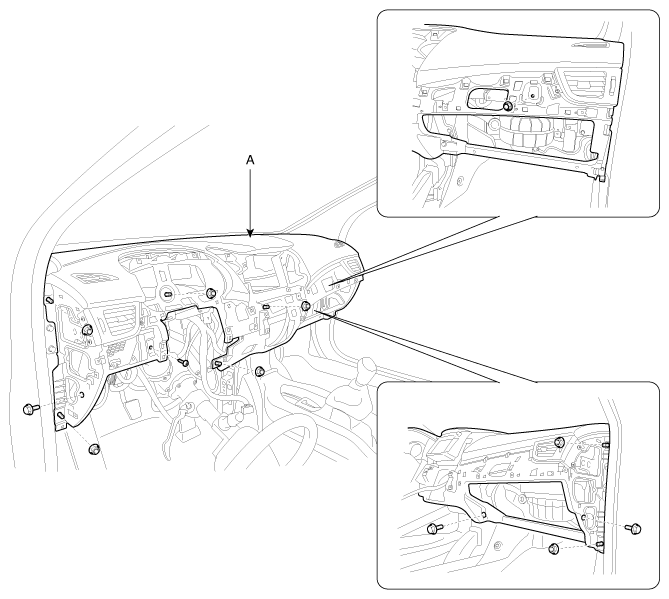

  24. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).
    Fig 10: Removing Main Crash Pad Assembly
    G12077177Courtesy of HYUNDAI MOTOR AMERICA
  25. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
