Charging System: Battery: Troubleshooting

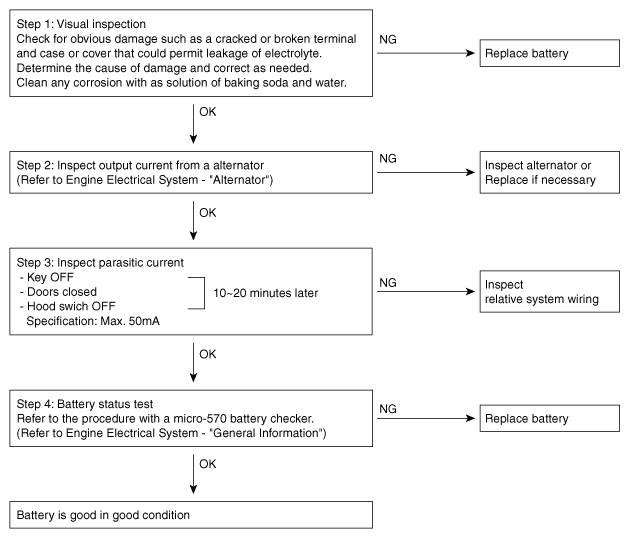

Fig 1: Battery Troubleshooting Flowchart

G12066154

Courtesy of HYUNDAI MOTOR AMERICA
