Components And Components Location: Components

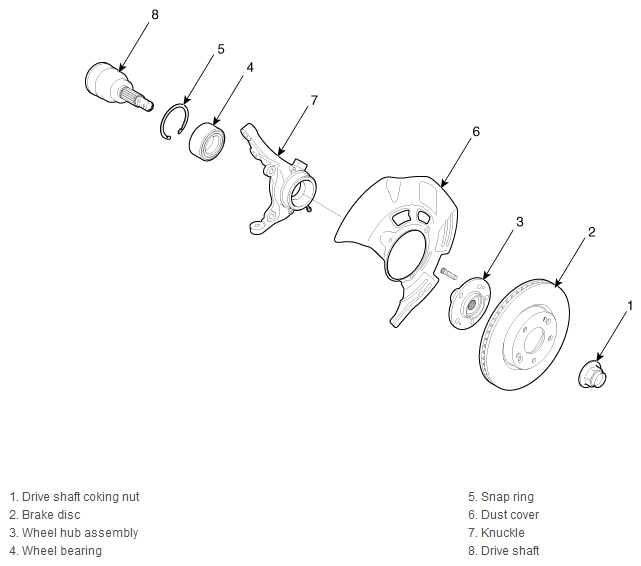

Fig 1: Exploded View Of Front Hub/Knuckle Components

G12066796

Courtesy of HYUNDAI MOTOR AMERICA
